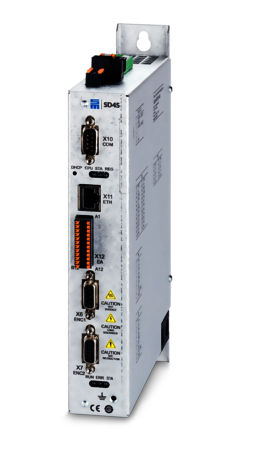

Frequency Converter SD4

Frequency Converter SD4S

The SD4S series is the successor to the proven SD2S variants. The SD4S devices are designed for stationary use in control cabinets of machine tools, turbo compressors and turbo blowers.

Highlights

  • PWM Frequencies up to 32 kHz

    Function:
    The SD4S provides PWM frequencies up to 32 kHz and commutation frequencies up to 64 kHz.

    Advantage:
    Higher rotating field frequencies up to 6,000 Hz and lower harmonic frequency components.

    Benefit:
    Realization of higher pole motor designs and lower motor losses.

  • Motor Analyzer

    Function:
    Simulation of the operating points and FFT analysis with THDi and THDu calculation.

    Advantage:
    Analysis of system performance already at the start of development.

    Benefit:
    Reduction of development time, costs and risk as well as optimization of the overall system.

  • Galvanically Isolated Thermal Contact Input

    Function:
    The input for the thermal contact is galvanically isolated from the logic and main voltage.

    Advantage:
    Safe operation even in case of an insulation problem of the thermal contact in the motor.

    Benefit:
    Protection of the inverter in the event of a fault and higher system availability.

Better Performance and New Control Functions

The first available unit type is designed for small high-speed spindles or motors in the power range from a few hundred watts to 1 kW. Application areas are e.g. dental milling machines or machines for super finishing as those required in watchmaking. Since small spindles do not come with a sufficient insulation resistance in the motors, SD4S now features a galvanic isolation of the thermal contact.

An absolute novelty is the design width of 40 mm only. Particularly in applications with many axes and a low performance, the demand for highly compact drive systems is great. Thus, the construction volume has been further reduced. The parameterization is realized via a default Ethernet interface that replaces the USB interface, which in industrial environments is prone to failure.

Moreover, SD4S comes with programmable digital measuring system interfaces such as Biss-C, EnDat2.2 and TTL. Via a Webserver, technicians can display device information without the need of additional parameterization software. Thanks to the real-time clock, a time synchronization of an incident is possible: Users can figure out whether a failure has been caused for example by a thunderstorm.

The optimized performance, higher speeds as well as the lower motor heating without sine-wave filter are substantial advantages of SD4S.

SD4S - Always the Perfect Drive Function for Your Application

PSM: (Permanently excited synchronous motor)
IPM (Interior Synchronous Permanent Magnet Motor)
ASYN: (Asynchronous motor)
SVC: (Sensorless vector control)
Servo: (Servo mode with encoder feedback)
V/f-PWM: (Sensorless V/f characteristic control based on pulse width modulation)
HS-Block: (Block control with Hall elements)

Frequency Converter SD4

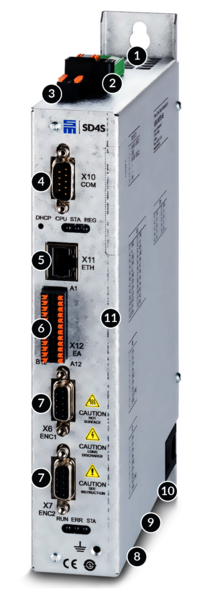

The Interfaces of Frequency Converter SD4S

  1. Supply voltage / external ballast resistor
  2. 24 VDC logic power supply
  3. Safety integrated „STO“:  Restart lock to meet category 4/PL e according to EN ISO 13849 1:2015 and EN 61508:2010 SIL3
  4. RS232/485, CAN, CANopen, Modbus RTU
  5. Ethernet 100 MBit, parameterization, diagnosis and operation, Modbus TCP
  6. Digital inputs and outputs
  7. Digital motor encoder interface (BiSS C, EnDat 2.2, TTL)
  8. Optional: EtherCAT, Profinet, Powerlink
  9. Galvanically isolated thermal contact
  10. Motor connection
  11. Analog motor encoder interface (Resolver, SinCos 1 Vpp)

Drive Functions and Safety Functions

SVC
V/f PWM
HS-Block
Servo
LI
STO

Software for Initial Operation and Parameterization: drivemaster4

The parameterization, simulation and diagnostic software drivemaster4 enables the user to commission drive systems easily and quickly. With the integrated simulation tool Motor Analyzer, the user can already prove at the time of system design that the desired system characteristics in terms of operating points and harmonics can be realized. The basis for this is suitable electrical motor data.

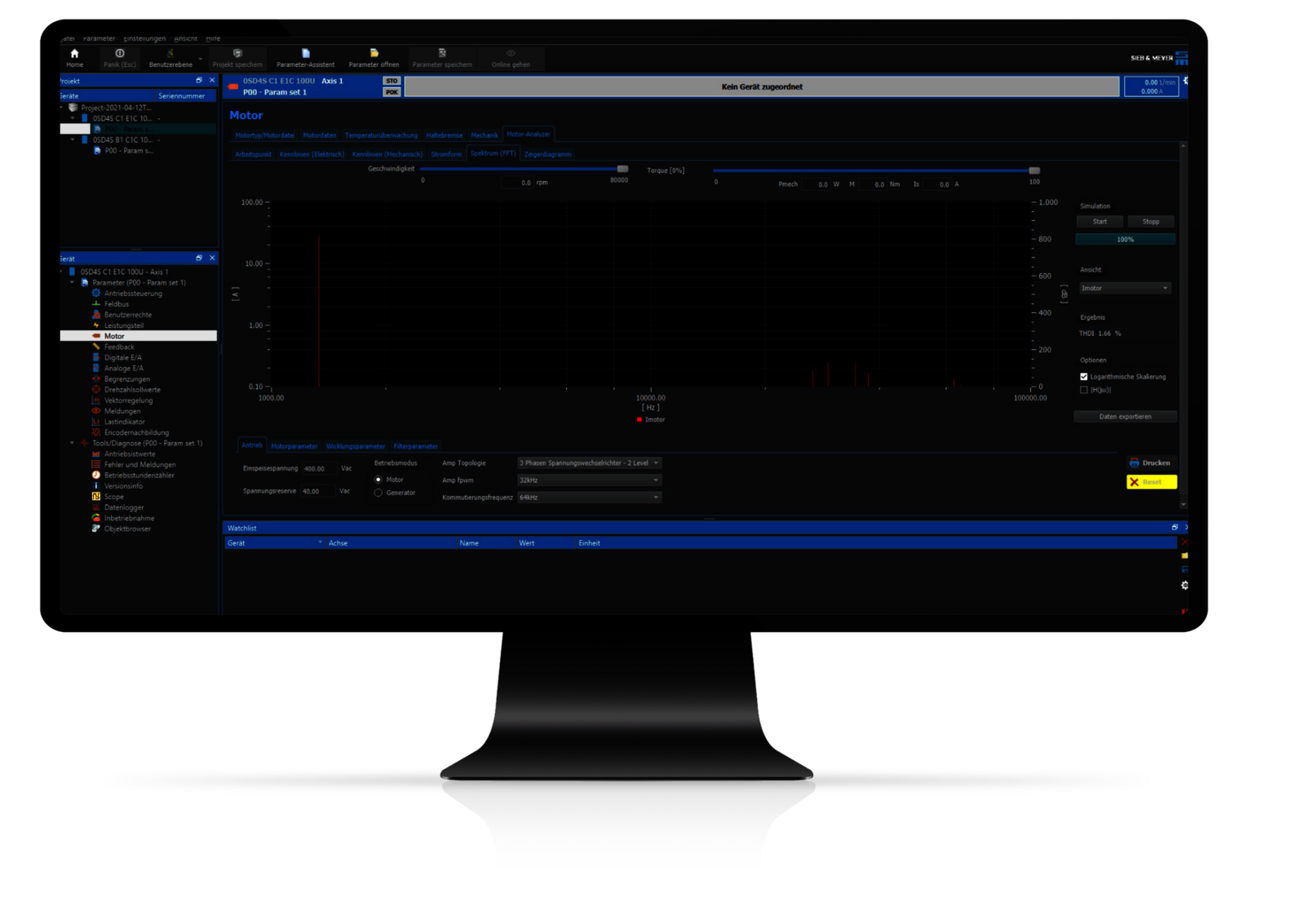

Simulation:

  • Electrical operating points
  • Influence of PWM frequency/converter topology
  • FFT analysis including THDi/THDu calculation
  • Export of simulation data

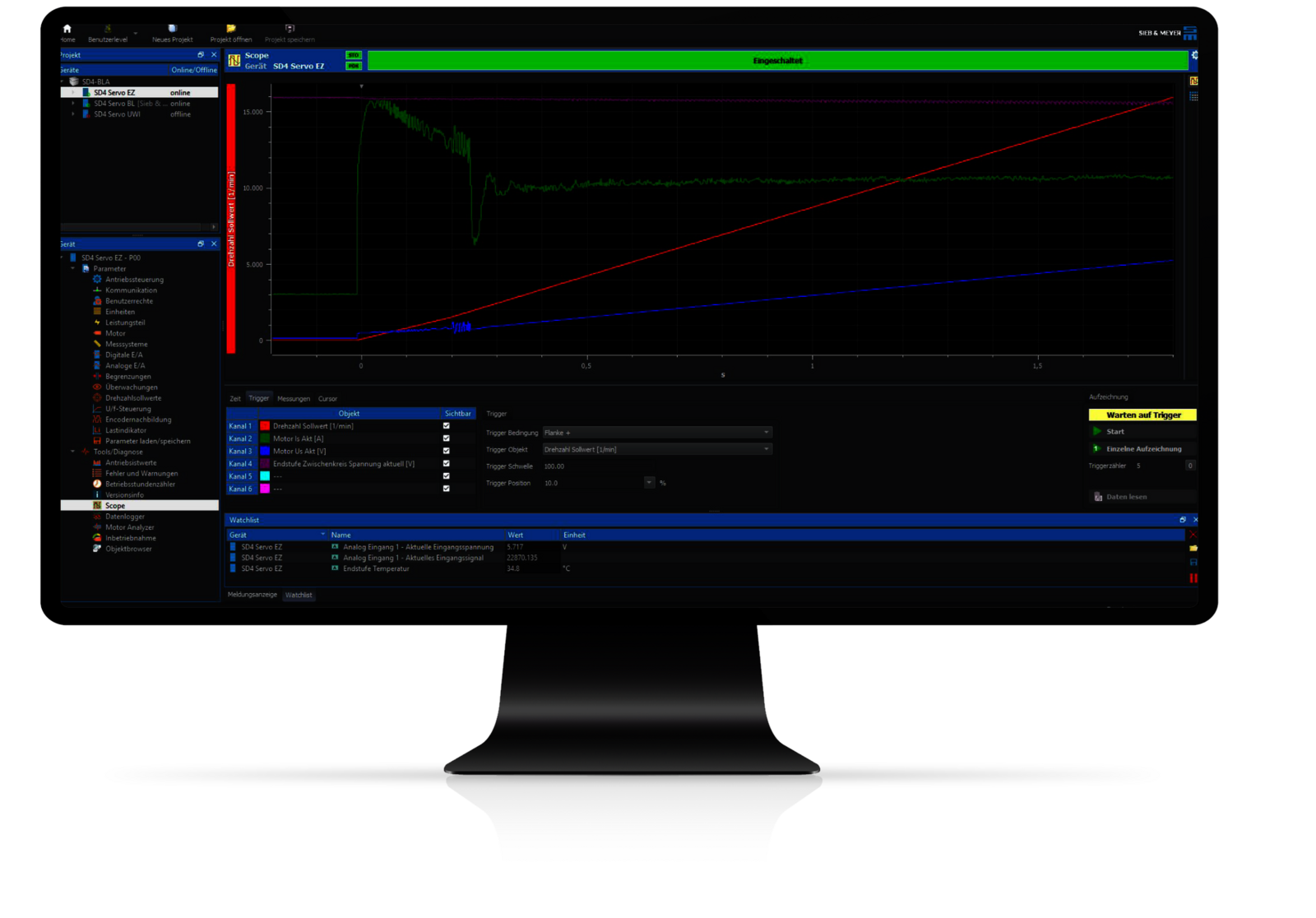

Start-up:

  • Parameterization of the motor data/interfaces
  • Optimization by means of oscilloscope
  • Commissioning tool

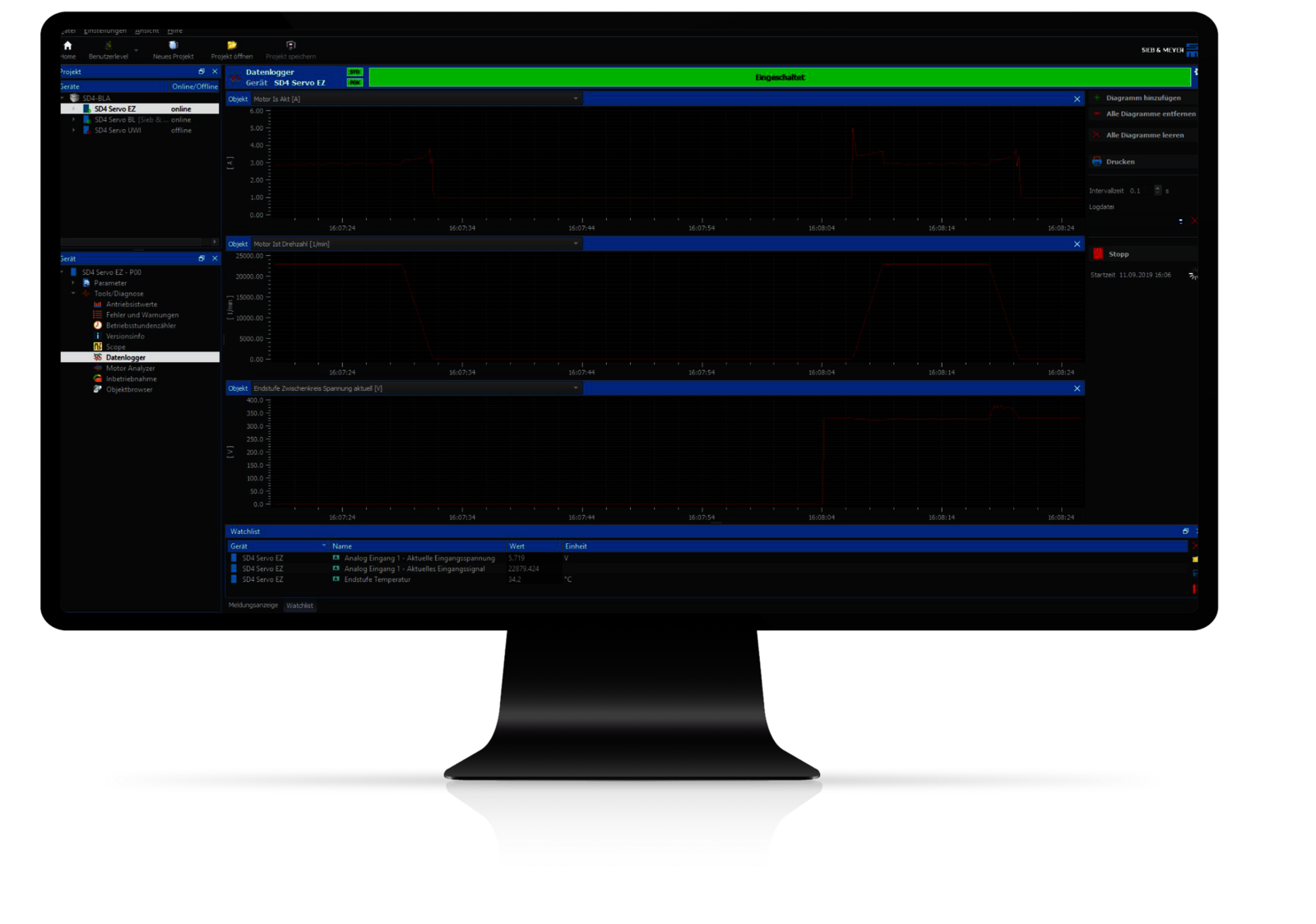

Monitoring:

  • Data logger
  • Real-time clock
  • Error memory
  • Operating hours counter

Technical Specifications of Frequency Converter SD4S



Voltage Class 50 VAC
Input Voltage Range 45..80 VAC

Device type Mains voltage Output power[kW] Apparent output power [kVA] Output current [A] Peak output current [A] H x W x D (mm) Weight Cooling
0SD4SB1D1Axxxx 1 x 50 VAC 0.3 kW 0.7 kVA@16 kHz 8 A @16 kHz 14 A 247 x 43 x 186 1.23 kg Air
0SD4SC1E1Axxxx 1 x 50 VAC 0.6 kW 1.2 kVA@16 kHz 14 A @16 kHz 28 A 247 x 63 x 186 2.15 kg Air




Voltage Class 230 VAC
Input Voltage Range 99..253 VAC

Device type Mains voltage Output power[kW] Apparent output power [kVA] Output current [A] Peak output current [A] H x W x D (mm) Weight Cooling
0SD4SB1D1Cxxxx 1 x 230 VAC 0.8 kW 1.6 kVA@16 kHz 4 A@16 kHz 14 A 247 x 43 x 186 1.23 kg Air
0SD4SC1E1Cxxxx 1 x 230 VAC 1.6 kW 3.2 kVA@16 kHz 8 A@16 kHz 28 A 247 x 63 x 186 2.15 kg Air
0SD4SD1E1Cxxxx 1 x 230 VAC 2.4 kW 6.4 kVA@16 kHz 16 A@16 kHz 28 A 247 x 83 x 186 2.4 kg Air

Voltage Class 400 VAC
Input Voltage Range 180..528 VAC

Device type Mains voltage Output power [kW] Apparent output power [kVA] Output current  [A] Peak output current  [A] H x W x D (mm) Weight Cooling
0SD4SD1B1Fxxxx 3 x 400 VAC 4 kW 5.5 kVA @16 kHz 8 A @16 kHz 20 A 247 x 83 x 186 2.46 kg Air
0SD4SD1F1Fxxxx 3 x 400 VAC 6 kW 8.3 kVA @16 kHz 12 A @16 kHz 24 A 247 x 83 x 186 2.46 kg Air
0SD4SE1I1Fxxxx  3 x 400 VAC 10 kW 13.9 kVA @16 kHz 20 A @16 kHz 56 A information will follow 4.8 kg Air
0SD4SF1I1Fxxxx  3 x 400 VAC 15 kW 20.8 kVA @16 kHz 30 A @16 kHz 56 A information will follow 5.6 kg Air
0SD4SH1M1Fxxxx * 3 x 400 VAC 24 kW 33 kVA @16 kHz 48 A @16 kHz 96 A information will follow information will follow Air
0SD4SH1N1Fxxxx 3 x400 VAC 32 kW 44 kVA @16 kHz 64 A @16kHz 120 A information will follow information will follow Air
0SD4SK1N1Fxxxx * 3 x 400 VAC 48 kW 66 kVA @16 kHz 96 A @16 kHz 120 A information will follow information will follow Air


* in realization

Applications

  • High-speed spindles are the key components of a machine tool. Only when operated in an optimal way, the desired machining accuracy, productivity and service life of the whole machine is guaranteed.



    Drilling, Routing

  • Grinding applications have a special position in the field of machine tools. Internal grinding applications, for example, require sensorless operation of asynchronous and synchronous spindles up to 250,000 rpm.



    Grinding

  • For dressing applications, it is essential to keep the spindle temperature low: a temperature increase in the spindle causes a longitudinal growth and therefore a shift of the tool position.



    Dressing

  • Small CAD/CAM routing machines are used, for example, in dental laboratories for jewelry making or engraving works as well as for producing advertising displays.



    Dental CAD/CAM

  • High-speed dicing spindles are the key components in machines for microchip separation – the so-called wafer dicing.



    Wafer Dicing

  • In the field of turbomachines, the system's efficiency can be continuously improved by increasing the system speed or omitting the gear.



    Compressed Air Production

  • Due to their design, a large number of technologies in the field of waste energy usage or mechanical energy storage require high-speed motors and generators



    Wastewater Treatment

  • Rotary atomization processes, e.g. applied for the production of milk powder or flue gas treatment, require high circumferential speeds. Therefore, it is necessary to use matching high-speed motors instead of low-speed standard motors.



    Atomizer

  • Refrigeration units with turbo or centrifugal compressors with higher power ranges operate with high speeds. Frequency converters by SIEB & MEYER easily provide the required speeds and their control method ensures an exceptionally low rotor heating.



    Refrigeration and Air Conditioning

  • Polygon scanners are based on special optics and operate, for example, sorting machines. Up to now, manufacturers had to install encoders to run these scanners with a high speed stability.

    Polygon Scanners

  • Precision is indispensable for tightening applications: If the screw is required to be tightened with a defined torque, the servo amplifier must meet this requirement.

    Tightening/Pressing/Clinching

  • PCB routing is determined by the continuously increasing technical and commercial requirements of the electronics industry. The steadily rising level of integration of the electronic components requires increasingly complex and more precise contours for PCBs.

    PCB Routing

News

Frequency Converter SD4S

SIEB & MEYER Introduces Innovative SpindleServiceTool (SST)

The new SpindleServiceTool (SST) by SIEB & MEYER helps spindle manufacturers and repair shops to optimize their quality management and save time and…

Read more
Frequency Converter SD4S

Highly Efficient Operation of High-speed Applications

The drive controllers of the SD4S series by SIEB & MEYER are well-proven wherever highly efficient and loss-free operation of high-speed motors is…

Read more
Produkt range SD4x by SIEB & MEYER
Frequency Converter SD4S

SIEB & MEYER Presents Extended SD4x Product Family at SPS 2024

SIEB & MEYER has further expanded its SD4x product family. From November 12 to 14, 2024, visitors of the SPS trade show in Nuremberg have a chance to…

Read more

Feel free to contact us

Enter the character string shown in the picture
[Translate to Englisch:] Frequenzumrichter SD4S

Frequency Converter SD4S

The product version SD4S - S for Stand-alone - is the first device of the new product series SD4x. The SD4S devices are designed for stationary use in control cabinets of machine tools, turbo compressors and turbo blowers.

Highlights

PWM Frequencies up to 32 kHz

  • Function:  The SD4S provides PWM frequencies up to 32 kHz and commutation frequencies up to 64 kHz.

  • Advantage:  Higher rotating field frequencies up to 6,000 Hz and lower harmonic frequency components.

  • Benefit:  Realization of higher pole motor designs and lower motor losses.

Motor Analyzer

  • Function:  Simulation of the operating points and FFT analysis with THDi and THDu calculation.

  • Advantage:  Analysis of system performance already at the start of development.

  • Benefit:  Reduction of development time, costs and risk as well as optimization of the overall system.

Galvanically Isolated Thermal Contact Input

  • Function:  The input for the thermal contact is galvanically isolated from the logic and main voltage.

  • Advantage:  Safe operation even in case of an insulation problem of the thermal contact in the motor.

  • Benefit:  Protection of the inverter in the event of a fault and higher system availability.

Better Performance and New Control Functions

The first available unit type is designed for small high-speed spindles or motors in the power range from a few hundred watts to 1 kW. Application areas are e.g. dental milling machines or machines for super finishing as those required in watchmaking. Since small spindles do not come with a sufficient insulation resistance in the motors, SD4S now features a galvanic isolation of the thermal contact.

An absolute novelty is the design width of 40 mm only. Particularly in applications with many axes and a low performance, the demand for highly compact drive systems is great. Thus, the construction volume has been further reduced. The parameterization is realized via a default Ethernet interface that replaces the USB interface, which in industrial environments is prone to failure.

Moreover, SD4S comes with programmable digital measuring system interfaces such as Biss-C, EnDat2.2 and TTL. Via a Webserver, technicians can display device information without the need of additional parameterization software. Thanks to the real-time clock, a time synchronization of an incident is possible: Users can figure out whether a failure has been caused for example by a thunderstorm.

The optimized performance, higher speeds as well as the lower motor heating without sine-wave filter are substantial advantages of SD4S.

SD4S - Always the Perfect Drive Function for Your Application

PSM: (Permanently excited synchronous motor)
IPM (Interior Synchronous Permanent Magnet Motor)
ASYN: (Asynchronous motor)
SVC: (Sensorless vector control)
Servo: (Servo mode with encoder feedback)
V/f-PWM: (Sensorless V/f characteristic control based on pulse width modulation)
HS-Block: (Block control with Hall elements)

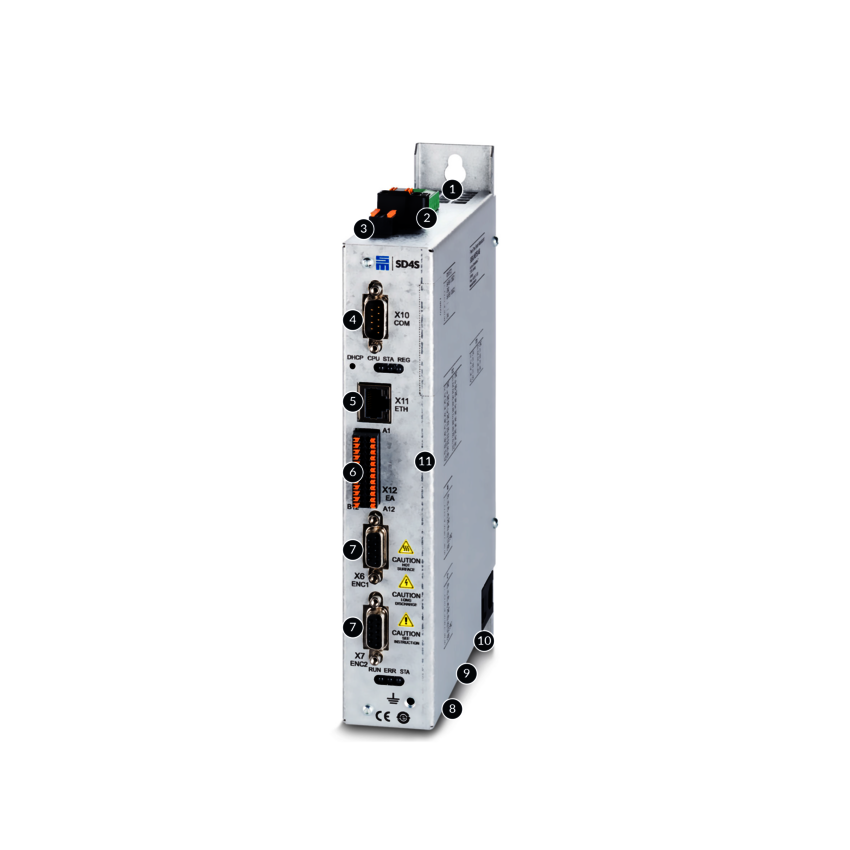

The Interfaces of Frequency Converter SD4S

[Translate to Englisch:] Frequenzumrichter SD4S
  1. Supply voltage / external ballast resistor
  2. 24 VDC logic power supply
  3. Safety integrated „STO“:  Restart lock to meet category 4/PL e according to EN ISO 13849 1:2015 and EN 61508:2010 SIL3
  4. RS232/485, CAN, CANopen, Modbus RTU
  5. Ethernet 100 MBit, parameterization, diagnosis and operation, Modbus TCP
  6. Digital inputs and outputs
  7. Digital motor encoder interface (BiSS C, EnDat 2.2, TTL)
  8. Optional: EtherCAT, Profinet, Powerlink
  9. Galvanically isolated thermal contact
  10. Motor connection
  11. Analog motor encoder interface (Resolver, SinCos 1 Vpp)

Drive Functions and Safety Functions

SVC
V/f PWM
HS-Block
Servo
LI
STO

Software for Initial Operation and Parameterization: drivemaster4

The parameterization, simulation and diagnostic software drivemaster4 enables the user to commission drive systems easily and quickly. With the integrated simulation tool Motor Analyzer, the user can already prove at the time of system design that the desired system characteristics in terms of operating points and harmonics can be realized. The basis for this is suitable electrical motor data.

Simulation:

• Electrical operating points
• Influence of PWM frequency/converter topology
• FFT analysis including THDi/THDu calculation
• Export of simulation data

Start-up:

• Parameterization of the motor data/interfaces
• Optimization by means of oscilloscope
• Commissioning tool

Monitoring:

• Data logger
• Real-time clock
• Error memory
• Operating hours counter

Technical Specifications of Frequency Converter SD4S

Voltage Class 50 V:

Device type Mains voltage Output power[kW] Apparent output power [kVA] Output current [A] Peak output current [A] H x W x D (mm) Weight Cooling
0SD4SB1D1Axxxx 1 x 50 VAC 0.3 kW 0.7 kVA@16 kHz 8 A @16 kHz 14 A 247 x 43 x 186 1.23 kg Air
0SD4SC1E1Axxxx 1 x 50 VAC 0.6 kW 1.2 kVA@16 kHz 14 A @16 kHz 28 A 247 x 63 x 186 2.15 kg Air




Voltage Class 230 V:

Device type Mains voltage Output power[kW] Apparent output power [kVA] Output current [A] Peak output current [A] H x W x D (mm) Weight Cooling
0SD4SB1D1Cxxxx 1 x 230 VAC 0.8 kW 1.6 kVA@16 kHz 4 A@16 kHz 14 A 247 x 43 x 186 1.23 kg Air
0SD4SC1E1Cxxxx 1 x 230 VAC 1.6 kW 3.2 kVA@16 kHz 8 A@16 kHz 28 A 247 x 63 x 186 2.15 kg Air
0SD4SD1E1Cxxxx 1 x 230 VAC 2.4 kW 6.4 kVA@16 kHz 16 A@16 kHz 28 A 247 x 83 x 186 2.4 kg Air

Voltage Class 400 V:

Device type Mains voltage Output power [kW] Apparent output power [kVA] Output current  [A] Peak output current  [A] H x W x D (mm) Weight Cooling
0SD4SD1B1Fxxxx 3 x 400 VAC 4 kW 5.5 kVA @16 kHz 8 A @16 kHz 20 A 247 x 83 x 186 2.46 kg Air
0SD4SD1F1Fxxxx 3 x 400 VAC 6 kW 8.3 kVA @16 kHz 12 A @16 kHz 24 A 247 x 83 x 186 2.46 kg Air
0SD4SE1I1Fxxxx  3 x 400 VAC 10 kW 13.9 kVA @16 kHz 20 A @16 kHz 56 A information will follow 4.8 kg Air
0SD4SF1I1Fxxxx  3 x 400 VAC 15 kW 20.8 kVA @16 kHz 30 A @16 kHz 56 A information will follow 5.6 kg Air
0SD4SH1M1Fxxxx * 3 x 400 VAC 24 kW 33 kVA @16 kHz 48 A @16 kHz 96 A information will follow information will follow Air
0SD4SH1N1Fxxxx 3 x400 VAC 32 kW 44 kVA @16 kHz 64 A @16kHz 120 A information will follow information will follow Air
0SD4SK1N1Fxxxx * 3 x 400 VAC 48 kW 66 kVA @16 kHz 96 A @16 kHz 120 A information will follow information will follow Air


* in realization

Applications

  • High-speed spindles are the key components of a machine tool. Only when operated in an optimal way, the desired machining accuracy, productivity and service life of the whole machine is guaranteed.



    Drilling, Routing

  • Grinding applications have a special position in the field of machine tools. Internal grinding applications, for example, require sensorless operation of asynchronous and synchronous spindles up to 250,000 rpm.



    Grinding

  • For dressing applications, it is essential to keep the spindle temperature low: a temperature increase in the spindle causes a longitudinal growth and therefore a shift of the tool position.



    Dressing

  • Small CAD/CAM routing machines are used, for example, in dental laboratories for jewelry making or engraving works as well as for producing advertising displays.



    Dental CAD/CAM

  • High-speed dicing spindles are the key components in machines for microchip separation – the so-called wafer dicing.



    Wafer Dicing

  • In the field of turbomachines, the system's efficiency can be continuously improved by increasing the system speed or omitting the gear.



    Compressed Air Production

  • Due to their design, a large number of technologies in the field of waste energy usage or mechanical energy storage require high-speed motors and generators



    Wastewater Treatment

  • Rotary atomization processes, e.g. applied for the production of milk powder or flue gas treatment, require high circumferential speeds. Therefore, it is necessary to use matching high-speed motors instead of low-speed standard motors.



    Atomizer

  • Refrigeration units with turbo or centrifugal compressors with higher power ranges operate with high speeds. Frequency converters by SIEB & MEYER easily provide the required speeds and their control method ensures an exceptionally low rotor heating.



    Refrigeration and Air Conditioning

  • Polygon scanners are based on special optics and operate, for example, sorting machines. Up to now, manufacturers had to install encoders to run these scanners with a high speed stability.

    Polygon Scanners

  • Precision is indispensable for tightening applications: If the screw is required to be tightened with a defined torque, the servo amplifier must meet this requirement.

    Tightening/Pressing/Clinching

  • PCB routing is determined by the continuously increasing technical and commercial requirements of the electronics industry. The steadily rising level of integration of the electronic components requires increasingly complex and more precise contours for PCBs.

    PCB Routing

About Sieb & Meyer

SIEB & MEYER AG - Drive and control solutions of the latest generation


SIEB & MEYER was founded in 1962 and is a successful company in the field of industrial electronics. With around 300 employees worldwide today, we develop and manufacture control technology and drive electronics. Our core technologies include controllers for mechanical engineering and automation technology, servo amplifiers for a wide range of drives and frequency converters for high-speed motors and generators.

Contact

SIEB & MEYER AG
Auf dem Schmaarkamp 21
D-21339 Lüneburg
Phone: +49 4131 203 0
Fax: +49 4131-203 2000

You can find all sales contacts at: www.sieb-meyer.com/contact/sales

You can find all agencies and partners at: www.sieb-meyer.com/contact/offices-and-sales-partners
