The optimal products for your wastewater treatment
Due to their design, a large number of technologies in the field of waste energy usage or mechanical energy storage require high-speed motors and generators. In addition, it must be possible to feed the electricity into the grid according to the local grid code.
Standard frequency converters are not capable of driving high-speed motors adequately as they do not provide the necessary high rotating field frequency on their own, but only with expensive additional equipment like sine-wave filters. Frequency converters by SIEB & MEYER are especially developed for the operation of high-speed motors.
They provide the necessary rotating field frequencies and ensure a low motor/generator heating by means of special control technologies without additional sine-wave filters. The motor heating has a significant impact on the system's efficiency and the service life of motors, generators and bearings.
Product Overview
| Device series | Power range | Input voltage | Technology | Speed (frequency) | Type | Communication | Safety functions |
|---|---|---|---|---|---|---|---|

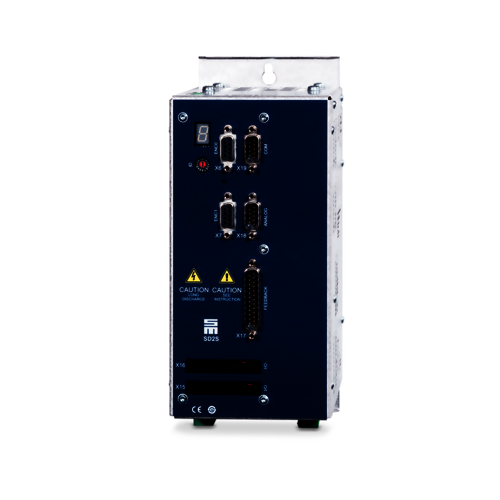

| SD2S | 0.3 .. 55 kVA | 115 .. 480 VAC | 2 Level PWM | 120,000 1/min (2,000 Hz) | Single-axis device | RS232, CAN Bus, EtherCAT, via Gateway: Profibus, Profinet | STO |

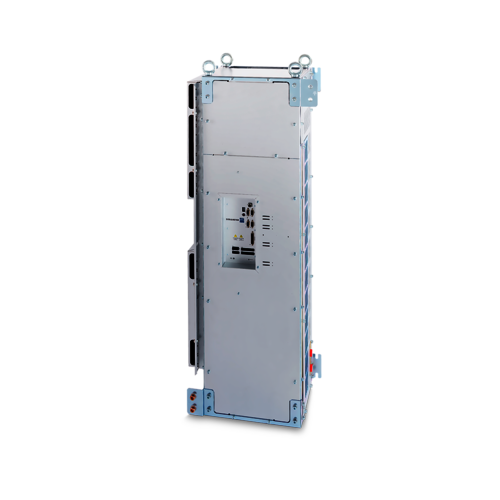

| SD2M Turbo | 80 .. 432 kVA | 230 .. 480 VAC | 3 Level PWM | 120,000 1/min (2,000 Hz) | Single-axis device | RS232/485, Modbus RTU, CAN Bus, EtherCAT, via Gateway: Profibus, Profinet | STO |

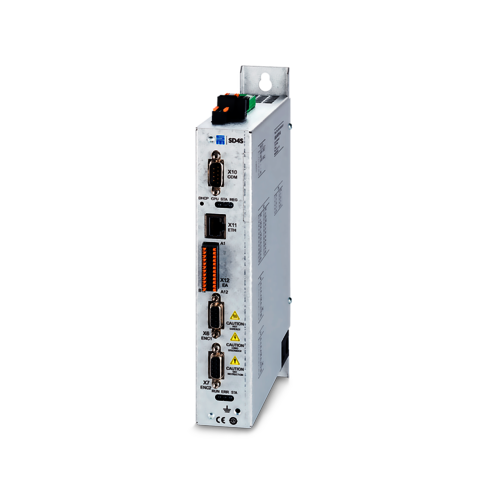

| SD4S | 0.6 .. 66 kVA | 115 .. 480 VAC | 3 Level PWM | 240,000 1/min (4,000 Hz) | Single-axis device | CANopen, EtherCAT, (Profinet, Powerlink) | STO |
| SD4M | 80 .. 470 kVA | 230 .. 480 VAC | 3-Level PWM | 240,000 1/min (4,000 Hz) | Single-axis without ballast circuit | CANopen, Ethernet, EtherCAT | STO |
Products precisely tailored for your application
With our experience from customized drive systems that are meanwhile produced in large series and as well as our standard devices, we are supporting you from the project planning phase to the series production.
