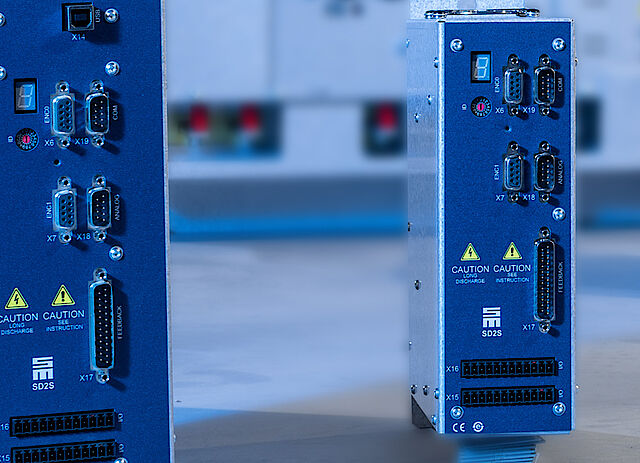

Servo Amplifier SD2S

Servo Drive SD2S

Powerful, flexible, low cost – these words describe the servo drive SD2S by SIEB & MEYER. The compact dimensions allow space-saving design of the switch cabinet. Linear motors, rotary servo motors, high-pole torque motors as well as synchronous/asynchronous tool spindles with or without sensor can be driven by SD2S.

For the connection to a higher-ranking control analog reference values (+/-10 V) or pulse-direction values, CAN bus or PROFIBUS* signals and protocols are processed. Alternatively, a CNC control can be connected via the bus system SERVOLINK 4. The communication via EtherCAT (CoE)** is optinally provided

* Via gateway
** CoE = CAN over EtherCAT

Highlights

  • Small Construction Volume

    Function:
    Provides a high nominal/peak current ratio.

    Advantage:
    Use of a smaller device in applications with short overload requirements.

    Benefit:
    Lower costs and construction volume.

  • Universal Motor Encoder Interface

    Function:
    Resolver, encoder / linear scale (TTL or Sin/Cos), EnDat, Hiperface, SSI, Hall sensor, linear Hall sensor, magnetoresistive sensor, NAMUR sensor.

    Advantage:
    High flexibility in the choice of the motor encoder interface.

    Benefit:
    Low system costs, free choice of the motor manufacturer.

  • Safety Integrated

    Function:
    Safety function STO integrated as standard.

    Advantage:
    No external components such as power contactors.

    Benefit:
    Reduction of the system costs.

The Smart Drive for Servo Applications

Universal Motor Encoder Interface

SD2S evaluates all common measuring systems for rotary and linear motors. The drive controls systems with absolute value encoders with EnDat, Hiperface or SSI interface, encoders, magnetoresistive sensors, Hall effect sensors, linear Hall sensors, linear scales with 1Vpp or TTL level as well as resolvers.

Safety Integrated

The currently effective safety category 4 can be reached by the integrated restart lock. As external protective circuits can be reduced, system costs are minimized.

Servo Amplifier SD2S

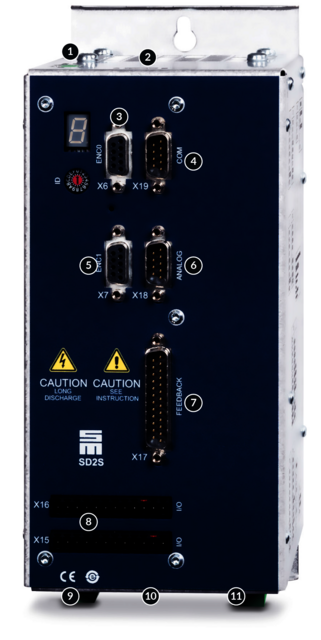

The Interfaces of Servo Drive SD2S

  1. Safety integrated "STO":
    Restart lock to meet category 4/PL e according to EN ISO 13849-1:2015 and EN 61508:2010 SIL3
  2. USB connection, parameterization, diagnosis and operation
  3. 2 TTL encoder inputs and outputs
  4. RS232 / CAN interface
  5. 2 TTL encoder inputs and outputs
  6. 2 analog reference value interfaces: +/-10 V;
    2 analog outputs: 0-10 V
  7. Universal motor encoder interface:
    Hall sensor, linear Hall sensor, magnetoresistive sensor, NAMUR Sensor (pulse generator), Sin/Cos encoder, resolver
  8. 9 digital inputs and 5 digital outputs
  9. SERVOLINK 4 via optical fiber PROFIBUS adapter
  10. Power supply
  11. Motor connection


PROFIBUS and PROFINET via gateway

Optional: EtherCAT (CoE)

Drive Functions and Safety Functions

SVC
V/f PWM
Servo
STO

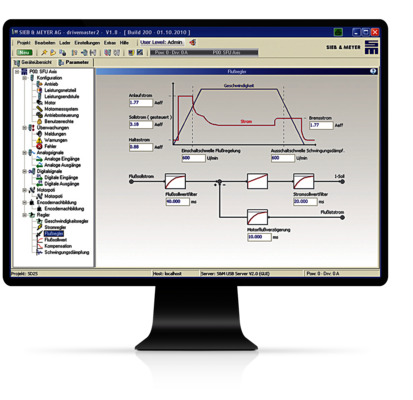

Software for Initial Operation and Parameterization: drivemaster2

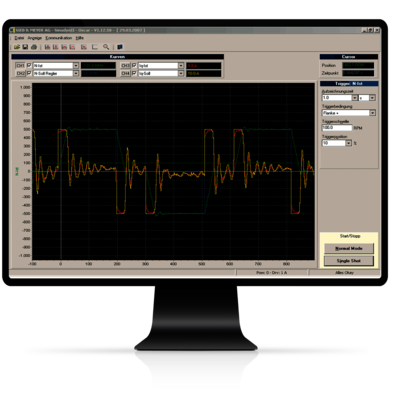

The oscilloscope function allows optimization of the axes in the machine via the drive-setup-tool without additional measuring equipment.

The clear design of the software allows intuitive parameterization via graphics and block diagrams. The „Parameter-Wizard“ guides the user step-by-step through the system configuration and allows intuitive setup of the device via help messages and comments.

Technical Specifications of Servo Drive SD2S

Device type Rated power1 Rated current Peak current/time Max. output
voltage1		 HxWxD (mm) Weight Cooling
Compact devices - 1 x 50 VAC power supply
0362X40DA 330 VA 10 Arms 14 Arms/5 s 3 x 45 VAC 249 x 70 x 188 2.5 kg Air
Compact devices - 1 x 110...230 VAC power supply
0362X40DC 1.5 kVA 10 Arms 14 Arms/5 s 3 x 200 VAC 249 x 70 x 188 2.5 kg Air
0362X40EC 1.5 kVA 10 Arms 28 Arms/2 s 3 x 200 VAC 249 x 70 x 188 2.5 kg Air
Compact devices - (3)1 x 110...230 VAC power supply
0362X41EC 3.8 kVA (6.9 kVA2) 20 Arms 28 Arms/5 s 3 x 200 VAC 253 x 104 x 188 3.5 kg Air
0362X41IC 3.8 kVA (6.9 kVA2) 20 Arms 56 Arms/2 s 3 x 200 VAC 253 x 104 x 188 3.5 kg Air
Compact devices - 3 x 200...480 VAC power supply
0362X40EF 4.3 kVA 7 Arms 28 Arms5 s 3 x 410 VAC 249 x 70 x 232 3.5 kg Air
0362X41EF 9.7 kVA 14 Arms 28 Arms/5 s 3 x 410 VAC 253 x 104 x 188 3.5 kg Air
0362X41IF 9.7 kVA 14 Arms 56 Arms/2 s 3 x 410 VAC 253 x 104 x 188 3.5 kg Air
0362X49IF3) 9.7 kVA 14 Arms 56 Arms/0,4 s 3 x 410 VAC 279 x 90 x 220 3.9 kg Air
0362X45EF 15.9 kVA 23 Arms 28,3 Arms/5 s 3 x 410 VAC 390 x 181 x 178 7.8 kg Air
0362X45IF 20.8 kVA 30 Arms 56,6 Arms/2 s 3 x 410 VAC 390 x 181 x 178 7.8 kg Air
0362X46IF 24.2 kVA 35 Arms 56,6 Arms/5 s 3 x 410 VAC 460 x 190 x 220 13.7 kg Air
0362X46LF 30.5 kVA 44 Arms 70,7 Arms/5 s 3 x 410 VAC 460 x 190 x 220 13.7 kg Air
0362X48MF 55.4 kVA 80 Arms 113 Arms/5 s 3 x 410 VAC 429 x 272 x 265 19 kg Air
0362X48OF 55.4 kVA 80 Arms 113 Arms/5 s 3 x 410 VAC 429 x 200 x 262 15 kg Water


X = 1: CAN bus
X = 2: EtherCAT and CAN bus
1) Rated power and max. output voltage for mains voltage/supply voltage (in italic)
2) Output power for three-phase mains
3) NRTL certified

Applications

  • High-speed spindles are the key components of a machine tool. Only when operated in an optimal way, the desired machining accuracy, productivity and service life of the whole machine is guaranteed.



    Drilling, Routing

  • Grinding applications have a special position in the field of machine tools. Internal grinding applications, for example, require sensorless operation of asynchronous and synchronous spindles up to 250,000 rpm.



    Grinding

  • For dressing applications, it is essential to keep the spindle temperature low: a temperature increase in the spindle causes a longitudinal growth and therefore a shift of the tool position.



    Dressing

  • Small CAD/CAM routing machines are used, for example, in dental laboratories for jewelry making or engraving works as well as for producing advertising displays.



    Dental CAD/CAM

  • High-speed dicing spindles are the key components in machines for microchip separation – the so-called wafer dicing.



    Wafer Dicing

  • In the field of turbomachines, the system's efficiency can be continuously improved by increasing the system speed or omitting the gear.



    Compressed Air Production

  • Due to their design, a large number of technologies in the field of waste energy usage or mechanical energy storage require high-speed motors and generators



    Wastewater Treatment

  • Rotary atomization processes, e.g. applied for the production of milk powder or flue gas treatment, require high circumferential speeds. Therefore, it is necessary to use matching high-speed motors instead of low-speed standard motors.



    Atomizer

  • Refrigeration units with turbo or centrifugal compressors with higher power ranges operate with high speeds. Frequency converters by SIEB & MEYER easily provide the required speeds and their control method ensures an exceptionally low rotor heating.



    Refrigeration and Air Conditioning

  • Polygon scanners are based on special optics and operate, for example, sorting machines. Up to now, manufacturers had to install encoders to run these scanners with a high speed stability.

    Polygon Scanners

  • Precision is indispensable for tightening applications: If the screw is required to be tightened with a defined torque, the servo amplifier must meet this requirement.

    Tightening/Pressing/Clinching

  • PCB routing is determined by the continuously increasing technical and commercial requirements of the electronics industry. The steadily rising level of integration of the electronic components requires increasingly complex and more precise contours for PCBs.

    PCB Routing

  • PCB scoring is determined by the continuously increasing technical and commercial requirements of the electronics industry. The prevailing pricing pressure on electronic devices demands a step-up in productivity by means of an increasing machine automation.

    PCB Scoring

News

Motion Controller MC2 by SIEB & MEYER
Servo Amplifier SD2S

Highly Precise Movement of up to 8 Axes

The drive system MC2 by SIEB & MEYER can precisely control the motion tasks of up to eight axes in real-time. The multichannel system comprises the…

Read more
Servo Amplifier SD2S

Optimal Consulting, Competent Support

A close relationship to the customer is part of the corporate philosophy of SIEB & MEYER based in Lueneburg, Germany. Therefore, the specialist for…

Read more
Frequency converter FC2 customized
Servo Amplifier SD2S

Frequency Converters for High-speed Spindles

To meet the individual needs of the Schmoll Maschinen GmbH SIEB & MEYER realized a customized version of the frequency converter FC2 with a specific…

Read more

Feel free to contact us

Enter the character string shown in the picture
Servoverstärker SD2S

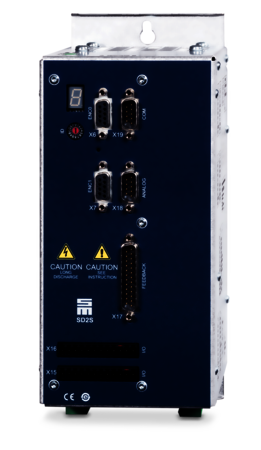

Servo Drive SD2S

Powerful, flexible, low cost – these words describe the servo drive SD2S by SIEB & MEYER. The compact dimensions allow space-saving design of the switch cabinet. Linear motors, rotary servo motors, high-pole torque motors as well as synchronous/asynchronous tool spindles with or without sensor can be driven by SD2S.

For the connection to a higher-ranking control analog reference values (+/-10 V) or pulse-direction values, CAN bus or PROFIBUS* signals and protocols are processed. Alternatively, a CNC control can be connected via the bus system SERVOLINK 4. The communication via EtherCAT (CoE)** is optinally provided

* Via gateway
** CoE = CAN over EtherCAT

Highlights

Small Construction Volume

  • Function:  Provides a high nominal/peak current ratio.

  • Advantage:  Use of a smaller device in applications with short overload requirements.

  • Benefit:  Lower costs and construction volume.

Universal Motor Encoder Interface

  • Function: Resolver, encoder / linear scale (TTL or Sin/Cos), EnDat, Hiperface, SSI, Hall sensor, linear Hall sensor, magnetoresistive sensor, NAMUR sensor.

  • Advantage: High flexibility in the choice of the motor encoder interface.

  • Benefit: Low system costs, free choice of the motor manufacturer.

Safety Integrated

  • Function: Safety function STO integrated as standard.

  • Advantage: No external components such as power contactors.

  • Benefit: Reduction of the system costs.

The Smart Drive for Servo Applications

Universal Motor Encoder Interface

SD2S evaluates all common measuring systems for rotary and linear motors. The drive controls systems with absolute value encoders with EnDat, Hiperface or SSI interface, encoders, magnetoresistive sensors, Hall effect sensors, linear Hall sensors, linear scales with 1Vpp or TTL level as well as resolvers.

Safety Integrated

The currently effective safety category 4 can be reached by the integrated restart lock. As external protective circuits can be reduced, system costs are minimized.

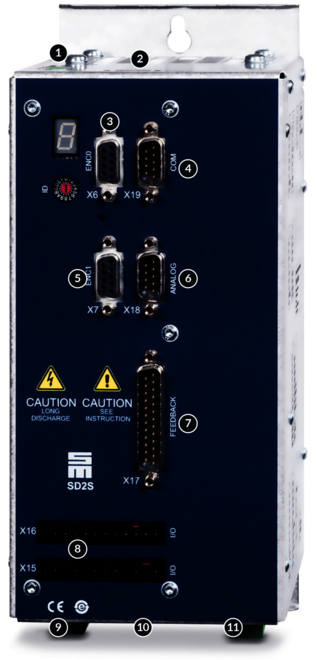

The Interfaces of Servo Drive SD2S
