Improved Overview for Index Table during Routing

CNC News

With INDXS, several routing contours can be clearly assigned to "their" tool and displayed in color. This tool-related display provides an improved overview when working with index values and reduces time-consuming paging in the user interface.

High precision is especially required in PCB routing. Dimensional accuracy can be achieved with the aid of index tables. The new INDXS function in the SIEB & MEYER CNC 93.00 for PCB routing provides increased operating safety and improved analysis options for this purpose. INDXS displays all the index values used for a tool. The tool is displayed with a base color. The index values are displayed each with a color gradation to make it clear at a glance, which index values are assigned to a particular tool. The corresponding routing contours are displayed with the same color gradation. This offers advantages for the operator such as a better overview and control before, during and after execution.

SIEB & MEYER pays special attention to continuously making routing applications more efficient. To optimize the operation we constantly implement new developments and improvements into the control system. We support our customers best possible in mastering routing challenges. INDXS is an expanded function of graphic visualization for index values and completes the comprehensive INDX settings for the compensation table during routing.

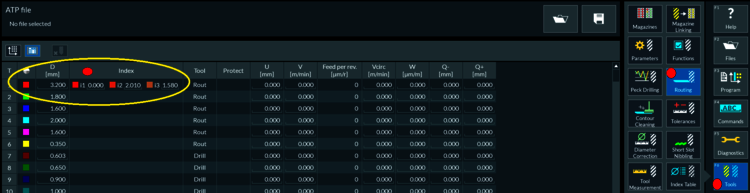

The page “Tool Selection”: colored visualization of index values.

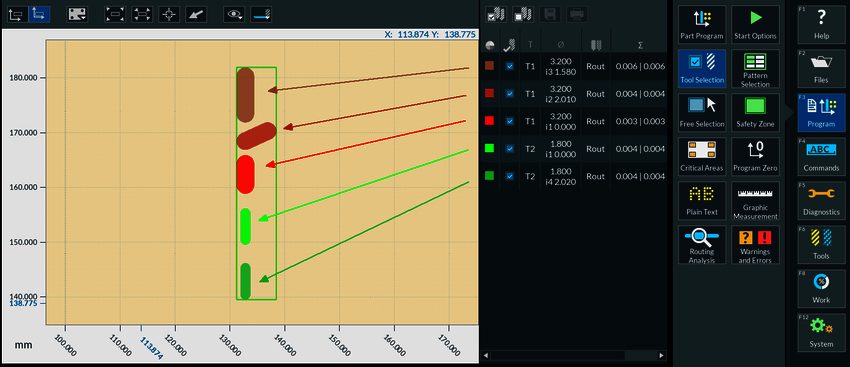

The page “Routing”: The colored visualization allows the operator a pre-check of the index values, which can be edited immediately.
